Thursday, October 25, 2012

REST/JAX-RS documentation generation

As I may have mentioned before :-) we have added a REST api to RHQ. And one thing we have clearly found out during development and from feedback by users is that the pure linking feature of REST may not be enough to work with a RESTful api and that some. Our Mark Little posted an article on InfoQ recently that touches the same subject.

Take this example:

Response updateSchedule(int scheduleId,
MetricSchedule in,
@Context HttpHeaders headers);

So this is a PUT request on some schedule with an id identifier where a certain MetricSchedule thing should be supplied. And then we get some Response back, which is just a generic
JAX-RS "placeholder".

Now there is a cool project called Swagger with a pretty amazing interactive UI to run REST requests in the browser against e.g. the pet store.

Still this has some limitations
  • You need to deploy wagger, which not all enterprises may want
  • The actual objects are not described as I've mentioned above

Metadata via annotations

The metadata in Swagger to define the semantics of the operations and the simple parameters is defined on the Java source as annotations on the restful methods like this:

@ApiOperation(value = "Update the schedule (enabled, interval) ",
responseClass = "MetricSchedule")
@ApiError(code = 404, reason = NO_SCHEDULE_FOR_ID)
Response updateSchedule(
@ApiParam("Id of the schedule to query") @PathParam("id") int scheduleId,
@ApiParam(value = "New schedule data", required = true) MetricSchedule in,
@Context HttpHeaders headers);

which is already better, as we now know what the operation is supposed to do, that it will return an
object of type MetricSchedule and for the two parameters that are passed we also get
a description of their semantics.

REST docs for RHQ

I was looking on how to document the stuff for some time and after finding the Swagger stuff it became clear to me that I do not need to re-invent the annotations, but should (re)use what is there. Unfortunately the annotations were deep in the swagger-core module.

So I started contributing to Swagger - first by splitting off the annotations into
their own maven module so that they do not have any dependency onto other modules, which makes
it much easier to re-use them in other projects like RHQ.

Still with the above approach the data objects like said MetricSchedule are not documented. In order to do that as well, I've now added a @ApiClass annotation to swagger-annotations, that allows to also document the data classes (a little bit like JavaDoc, but accessible from an annotation processor). So you can now do:

@ApiClass(value = "This is the Foo object",
description = "A Foo object is a place holder for this blog post")
public class Foo {
int id;
@ApiProperty("Return the ID of Foo")
public int getId() { return id; }

to describe the data classes.

The annotations themselves are defined in the following maven artifact:


which currently (as I write this) is only available from the snapshots repo

<!-- TODO temporary for the swagger annotations -->
<name>Sonatype OSS Snapshot repository</name>

The generator

Based on the annotations I have written an annotation processor that analyzes the files and creates an XML document which can then be transformed via XSLT into HTML or DocBookXML (which can then be transformed into HTML or PDF with the 'normal' Docbook tool chain.

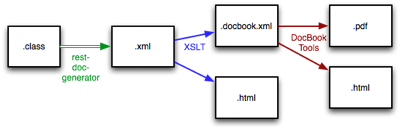

Tool chain

You can find the source for the rest-docs-generator in the RHQ-helpers project on GitHhub.

The pom.xml file also shows how to use the generator to create the intermediate XML file.


You can see some examples of the generated output (for some slightly older version of the generator in the RHQ 4.5.1 release files on sourceforge, as well as the in the documentation for JBoss ON, where our docs team just took the input and fed it into their DocBook tools chain almost without and change.


If you are interested to see how the toolchain is used in RHQ, you can look at the pom.xml file from the server/jar module ( search for 'REST-API' ).

Project independent

One thing I want to emphasize here is that the generator with its toolchain is completely independent from RHQ and can be reused for other projects.

Thursday, October 11, 2012

Another nice JBoss OneDayTalk is over (updated)

Yesterday I was at the OneDayTalk conference organized by the Munich JBoss User Group.

And as in the last two years this was a nice conference with an interested audience and it was good
to meet with colleagues again.

This year I was talking about "RHQ and its interfaces" - and other than some other speakers, I enjoyed to just give my talk in German :)
My slides are available as PDF.

Update: A recording of my talk (which I held in German) is now available:

RHQ und seine Schnittstellen from Heiko W. Rupp on Vimeo.

Thanks for the Munich JBug to organize this nice conference and to allow me to present there.

Thursday, October 04, 2012

RHQ 4.5.1 released

I am pleased to announce the immediate availability of RHQ 4.5.1.
RHQ is a system for management and monitoring of resources like application servers
or databases and can be extended by writing plugins.

Actually I wanted to announce 4.5.0 a week ago, but a first user report showed an
error in the upgrade path from a previous version, so we have pulled that release
and fixed the bug along with another one and have now created a fresh 4.5.1 release.

Notable changes are:

  • Python support in the Command Line Interface (CLI)
  • Support for importing of scripts in the CLI
  • Enhancements in the JBossAS7 plugin
  • Enhancements in the REST API
  • Events tab allows to filter by date range
  • Postgres 9.2 is now supported as backend database
  • The Sigar library has been updated.

Special thanks goes to Elias Ross and Richard Hensman for their contributions.

Maven artifacts have been uploaded to the JBoss Nexus repo and should show up on maven central soon.

You can find the full release notes, that also contain a download link on the RHQ wiki.

This time we have included the full output from git shortlog for the commits of the release. Please tell us if this is useful for you.

Heiko on behalf of the RHQ team
